If you want longer flight times and better efficiency, you should choose an 1800KV motor. For more speed and agility, a 2100KV motor works best. The drone motor KV rating tells you how fast your motor spins per volt. Higher KV means more speed but less torque, which can cause more heat and faster battery drain. You should match lower KV motors with higher voltage batteries (like 6S) and larger propellers for smooth, efficient flights. Higher KV motors fit lighter builds and smaller props for quick, sharp moves.
Always consider your flying style and drone build before picking the right KV value.
Key Takeaways
- Pick 1800KV motors if you want longer flights. They use power better and give smooth control. They work well with bigger propellers and high-voltage batteries.
- Choose 2100KV motors for more speed and quicker moves. They respond fast and are good for sharp turns. Use them with smaller propellers and low-voltage batteries.
- Make sure your motor KV matches your battery and propeller size. This helps stop overheating and gives the best results.
- Think about how you fly and your drone’s build before picking a motor KV. This helps you get steady flights or fast racing moves.
- Do not use high KV motors with big props and high voltage batteries. This keeps your drone safe and protects its parts.
Drone Motor KV Rating
KV Meaning
You need to understand what the drone motor KV rating means before choosing a motor. KV stands for “RPM per volt.” This number tells you how many times your motor spins for each volt you give it. For example, if you have a 1800KV motor and use a 10-volt battery, your motor will spin at 18,000 RPM with no load. Manufacturers measure KV by spinning the motor without any propeller and checking the speed and voltage. The KV rating depends on how the motor is built, including the number of wire turns and the strength of the magnets. The drone motor KV rating does not measure power or torque directly, but it helps you predict how fast your drone can go.
Speed and Torque
The drone motor KV rating affects both speed and torque. When you pick a higher KV motor, you get more speed but less torque. Lower KV motors spin slower but give you more torque. Here is a quick comparison:
| Aspect | Higher KV Motor | Lower KV Motor |
|---|---|---|
| Speed (RPM per Volt) | Spins faster | Spins slower |
| Torque | Less torque | More torque |
| Propeller Size | Best for smaller props | Best for larger props |
| Application | Racing, quick moves | Carrying weight, smooth flights |
| Motor Heating | More heat risk | Less heat risk |
You should remember that higher KV does not always mean better. You need to match the KV to your drone’s needs.
Battery and Propeller Match
You must match your drone motor KV rating with the right battery and propeller. Lower KV motors, like 1800KV, work well with higher voltage batteries such as 6S. This setup keeps the motor from spinning too fast and getting too hot. Higher KV motors, like 2100KV, pair better with lower voltage batteries like 4S. This combination gives you more speed without overheating. Lower KV motors also handle larger propellers, which help lift heavier drones or give smoother control. Higher KV motors fit smaller props, making your drone more agile and responsive. Always check the manufacturer’s recommendations for battery voltage and prop size to get the best performance and avoid damage.
1800KV Motor
Performance
1800KV motors work well on 5-inch quadcopters. They give you a good mix of power and control. If you use a 6S battery, your drone flies steadily and uses less energy. These motors have enough torque for bigger propellers. This helps your drone carry more weight or fly farther. You will see smoother throttle changes, so your drone is easier to handle. This is great for freestyle or cinematic flying.
| Parameter | Typical Range / Value | Notes |
|---|---|---|
| Thrust per Motor at Full Throttle (5-inch) | 900–1300 grams | Supports a 3:1 thrust-to-weight ratio for freestyle |
| Typical RPM Target for 5-inch Quads | ~38,000 RPM | Calculated as KV × Voltage, with real-world reduction |
| Battery Voltage | 6S (22.2V nominal) | Optimizes RPM and thrust |
| Flight Style Suitability | Stable, efficient | Best for cruising, long-range, and smooth freestyle |
Efficiency
1800KV motors are more efficient than higher KV motors. They spin bigger propellers at slower speeds. This means you get more thrust for each watt used. You can fly longer, and your battery lasts more. Here are some simple facts about efficiency:
- 1800KV motors use less current and produce less heat.
- You get more thrust per watt than with higher KV motors.
- Bigger propellers work well with 1800KV motors and help lift.
- You can fly steadily at a lower throttle and save battery.
Tip: To fly longer and keep your drone cool, use 1800KV motors with 6S batteries and 6 or 7 inch propellers.
Use Cases
Many drones use 1800KV motors for different flying styles. These motors are good for both new and skilled pilots. They give stable, efficient, and flexible performance. You can use them for:
- 250mm quadcopters like the Q250 frame
- 5-inch propellers (4045 or 6045) for racing or tricks
- Long flights with 6S batteries and 6–7 inch props
- FPV racing, freestyle moves, and hobby flying
- Drones that need steady flight and easy control
1800KV motors help you fly smoothly and efficiently. They are good for long flights, tricks, or learning new skills.

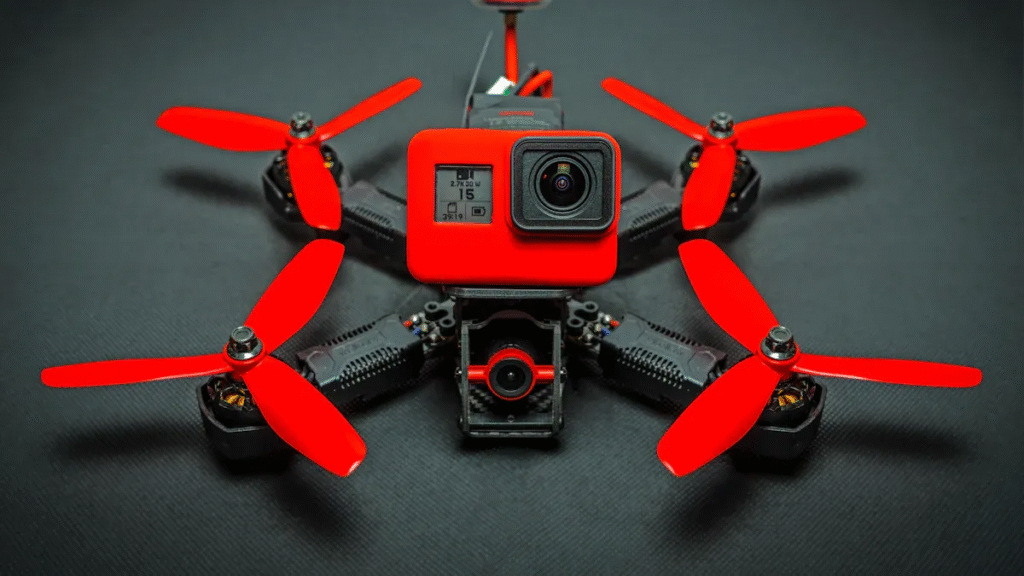

2100KV Motor
Performance
You get high speed and sharp responsiveness with a 2100KV motor. This motor spins at 2100 revolutions per minute for every volt you supply. When you use a 4S battery, your drone can reach impressive RPMs. You will notice quick acceleration and instant changes in direction. These motors help you perform aggressive maneuvers and tight turns. If you want to race or fly acrobatic tricks, a 2100KV motor gives you the edge. Most 5-inch freestyle and racing drones use motors in this KV range. You can expect a lively flight experience with fast throttle response.
Tip: For the best results, pair 2100KV motors with 5-inch propellers and a 4S LiPo battery. This setup balances speed and control for racing and freestyle flights.
Power Draw
A 2100KV motor draws more current than a 1800KV motor when you use the same propeller and battery. This higher current means your drone uses more power and your battery drains faster. You may also notice more heat in your motors and electronic speed controllers (ESCs). Here is what you should know:
- 2100KV motors pull more amps at full throttle compared to 1800KV motors.
- Higher power draw can stress your battery, ESC, and wiring.
- You may need to limit throttle or motor output to avoid overheating.
- Lower efficiency leads to shorter flight times.
- If you want longer flights, consider using a lower KV motor or limiting your throttle.
Use Cases
You often see 2100KV motors in racing and freestyle drones. These motors work best with lighter builds and smaller props. They give you the speed and agility needed for fast courses and quick tricks. Here is a table showing common setups:
| Drone Type | Frame Size | KV Range for 4S | KV Range for 6S | Battery Voltage | Use Case |
|---|---|---|---|---|---|
| Freestyle/Racing | 5″-5.5″ | 2100-2750 | 1700-2100 | 4S-6S | Standard FPV, freestyle, racing |
You can use a 4S 1550mAh 75C LiPo battery with 5-inch propellers, such as GemFan 5050BN, for a popular racing setup. This combination gives you fast acceleration and tight control. If you want to compete or practice acrobatics, a 2100KV motor is a strong choice.
Comparison Table
Speed
You want your drone to move fast and respond quickly. The KV rating controls how fast the motor spins. A 2100KV motor spins faster than a 1800KV motor when you use the same battery voltage. You will notice sharper acceleration and quicker changes in direction with the higher KV motor. Racing pilots often choose 2100KV motors for this reason.
| Motor KV | Typical RPM (on 4S battery) | Flight Style |
|---|---|---|
| 1800KV | ~26,000 – 29,000 | Smooth, controlled |
| 2100KV | ~31,000 – 34,000 | Fast, agile |
Note: If you want maximum speed, pick a 2100KV motor. If you prefer smooth control, choose 1800KV.
Efficiency
Efficiency tells you how much power your drone uses to fly. You want high efficiency for longer flights and cooler motors. The 1800KV motor gives you better efficiency because it draws less current and produces less heat. You can fly longer, nd your battery lasts more. The 2100KV motor uses more power to spin faster, which lowers efficiency.
- 1800KV Motor:
- Uses less current
- Stays cooler
- Works well with bigger props
- 2100KV Motor:
- Uses more current
- Gets hotter
- Works best with smaller props
If you want to save battery and keep your drone cool, use an 1800KV motor.
Flight Time
Flight time depends on how much power your motor uses. The 1800KV motor gives you longer flight times because it is more efficient. You can fly for several minutes more compared to a 2100KV motor. The 2100KV motor drains the battery faster, so you get shorter flights.
| Motor KV | Typical Flight Time (5″ quad, 1300mAh battery) |
|---|---|
| 1800KV | 5–7 minutes |
| 2100KV | 3–5 minutes |
You should choose 1800KV motors for endurance and longer flights.
Battery Drain
Battery drain shows how quickly your drone uses up its battery. The 2100KV motor pulls more amps, which means your battery empties faster. You need to watch your battery voltage and avoid flying too long. The 1800KV motor uses less power, so your battery lasts longer.
- 1800KV Motor:
- Lower amp draw
- Less stress on the battery
- 2100KV Motor:
- Higher amp draw
- More stress on the battery
Always check your battery after each flight. If you use 2100KV motors, you need to recharge more often.
Prop Size
Propeller size affects how your drone flies. You need to match the motor KV to the right propeller. Manufacturers recommend different prop sizes for each motor. The 1800KV motor works best with 5″ to 5.5″ propellers. You can use bigger props for more lift and smoother control. The 2100KV motor fits smaller props, usually 5″ to 6″. Racing pilots use these for fast, sharp moves.
| Motor Model | KV Rating | Compatible Propeller Size(s) |
|---|---|---|
| EMAX RS3 Race Spec III 2306 | 1800KV | 5″ to 5.5″ |
| Wasp Major V2 22.6-6.6 | 2100KV | MCK HQ propellers, Gemfan 51466 V2, 6032 (~5″ to 6″) |
Tip: Always check the motor and propeller specs before building your drone. Using the wrong prop size can damage your motor or lower your flight performance.
Summary Table
| Feature | 1800KV Motor | 2100KV Motor |
|---|---|---|
| Speed | Moderate, smooth | High, agile |
| Efficiency | High, less heat | Lower, more heat |
| Flight Time | Longer | Shorter |
| Battery Drain | Slower | Faster |
| Prop Size | 5″ to 5.5″ | 5″ to 6″ |
If you want longer flights and stable control, pick 1800KV. If you want speed and sharp moves, go with 2100KV.
Choosing KV

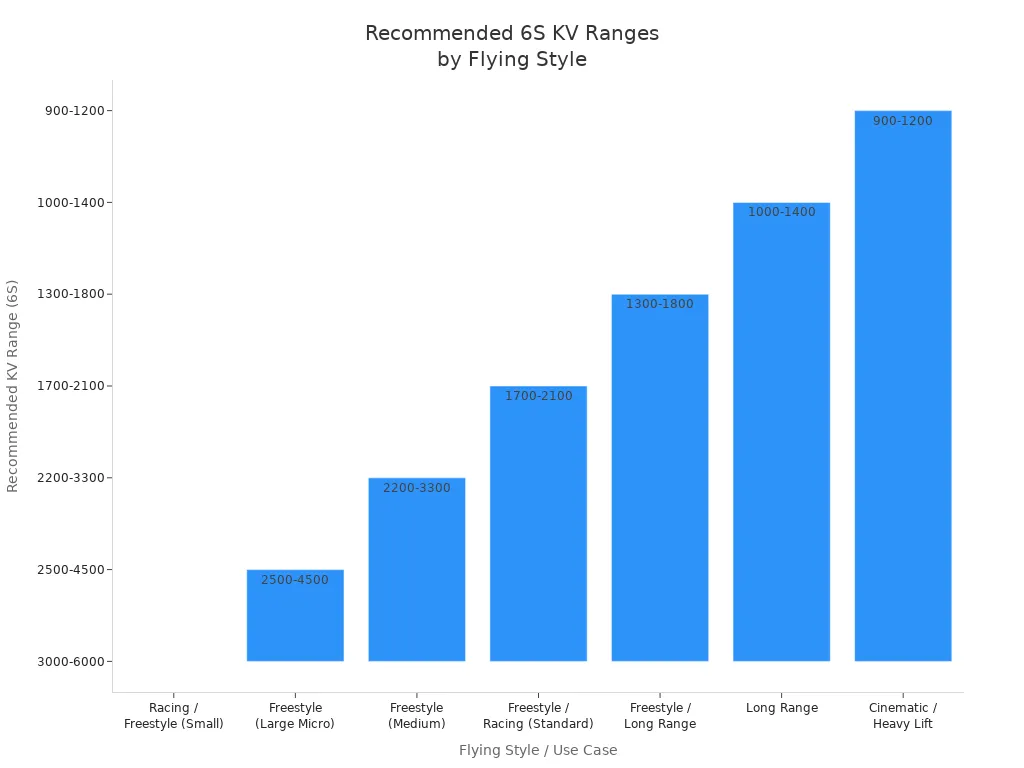

Flying Style
Think about how you want to fly your drone first. Racing and freestyle drones need fast motors. High KV motors, like 2100KV or more, spin very fast and work with small props. These motors help your drone turn quickly and speed up. Cinematic and long-range drones need smooth and steady flight. Lower KV motors, such as 1800KV, give more torque for bigger props and heavier loads. This setup lets you fly farther and get stable video.
| Flying Style | Recommended KV (6S) | Motor Size Examples | Prop Size |
|---|---|---|---|
| Racing/Freestyle | 1700–2100 | 2207, 2306 | 5″ |
| Long Range/Cinematic | 1300–1800 | 2506, 2408 | 6″–7″ |
Tip: Pick a motor KV that matches how you want to fly.
Drone Build
The way you build your drone affects which motor KV is best. Frame size decides what propeller size you can use. This changes how much thrust and efficiency you get. Small frames, like 3″ to 5″, work best with high KV motors and small props. Big frames, like 6″ to 8″ or more, need low KV motors and big props for better balance and to carry more weight. Battery voltage is important too. Use low KV motors with high voltage batteries, like 6S, so the motors do not get too hot. Use high KV motors with low voltage batteries, like 4S, for more speed.
- Small racing drones: High KV (2100–2700), 4S battery, 5″ props.
- Freestyle drones: Medium KV (1700–2100), 6S battery, 5″–6″ props.
- Cinematic drones: Low KV (1300–1800), 6S battery, 6″–7″ props.
Note: Always make sure your motor, battery, and ESC work together.
Mistakes and Tips
Many people make mistakes when picking motors. Try not to do these things:
- Using high KV motors with big props and high voltage batteries. This can make motors too hot and break them.
- Not thinking about torque and current draw. Motors can get too hot or stop working in the air.
- Not matching the ESC and battery specs to the motor. This can break your parts.
- Not checking the manufacturer’s data for thrust and efficiency.
- Putting motors on the wrong way, which makes the drone fly badly.
Here are some tips to help you:
- Weigh your drone and what it carries to know how much thrust you need.
- Pick your frame and prop size first, then choose the motor KV.
- Make sure your thrust-to-weight ratio fits your flying style.
- Test your drone for current draw and heat before flying.
- Use ESCs that can handle at least 20% more than your motor’s max current.
- Check motor and ESC temperatures while flying.
Safety tip: Use the right wire size and connectors, and keep wires short to help keep things cool.
You should choose a lower drone motor KV rating, like 1600KV to 1700KV, for endurance and long-range flights. These motors work well with larger props and give you longer flight times. For speed and agility, select a KV rating between 1900 and 2100KV. This range gives you fast response and sharp control, which top racing pilots prefer. Always match your drone motor KV rating to your battery, propeller, and flying style for the best results.
Use the tips and tables in this guide to build a drone that fits your needs and flying goals.
FAQ
What does KV mean for drone motors?
KV shows how many times your motor spins for each volt you supply. For example, a 1800KV motor spins 1800 times per volt. You use KV to choose the right motor for your drone.
Can I use a 2100KV motor with a 6S battery?
You should avoid pairing a 2100KV motor with a 6S battery. This setup can cause overheating and damage. Always match high KV motors with lower voltage batteries, like 4S.
Which KV rating gives me longer flight times?
| KV Rating | Flight Time | Efficiency |
|---|---|---|
| 1800KV | Longer | Higher |
| 2100KV | Shorter | Lower |
You get longer flights with 1800KV motors. These motors use less power and keep your drone cool.
How do I pick the right propeller for my motor’s KV?
You match lower KV motors with bigger propellers. You use smaller props for higher KV motors. Always check the motor’s specs before choosing a propeller.
Why does my drone get hot with high KV motors?
High KV motors spin faster and pull more current. This creates more heat in your motor and ESC. You should monitor temperatures and avoid pushing your drone too hard.
