Description

The LN5315D24-001 is tuned at 440KV for big-prop efficiency on 24–28-inch airframes. It provides stable torque, low vibration and controlled temperatures for continuous-duty, mission-critical operations.

Key benefits

• KV matched to 24–28 in props for strong hover and cruise efficiency under payload.

• Smooth & reliable operation with balanced mechanical/electromagnetic design.

• Efficiency-focused part-throttle performance extends endurance and reduces heat.

• Integration-friendly with customizable lead length/termination for clean routing and service.

Typical applications
Aerial mapping & surveying, powerline/oil & gas inspection, security surveillance, payload delivery, and long-endurance patrol.

Basic info

• Model: LN5315D24-001

• KV: 440KV

• Recommended platform size: 24–28-inch drones

• Brand: Skyrush

Integration notes

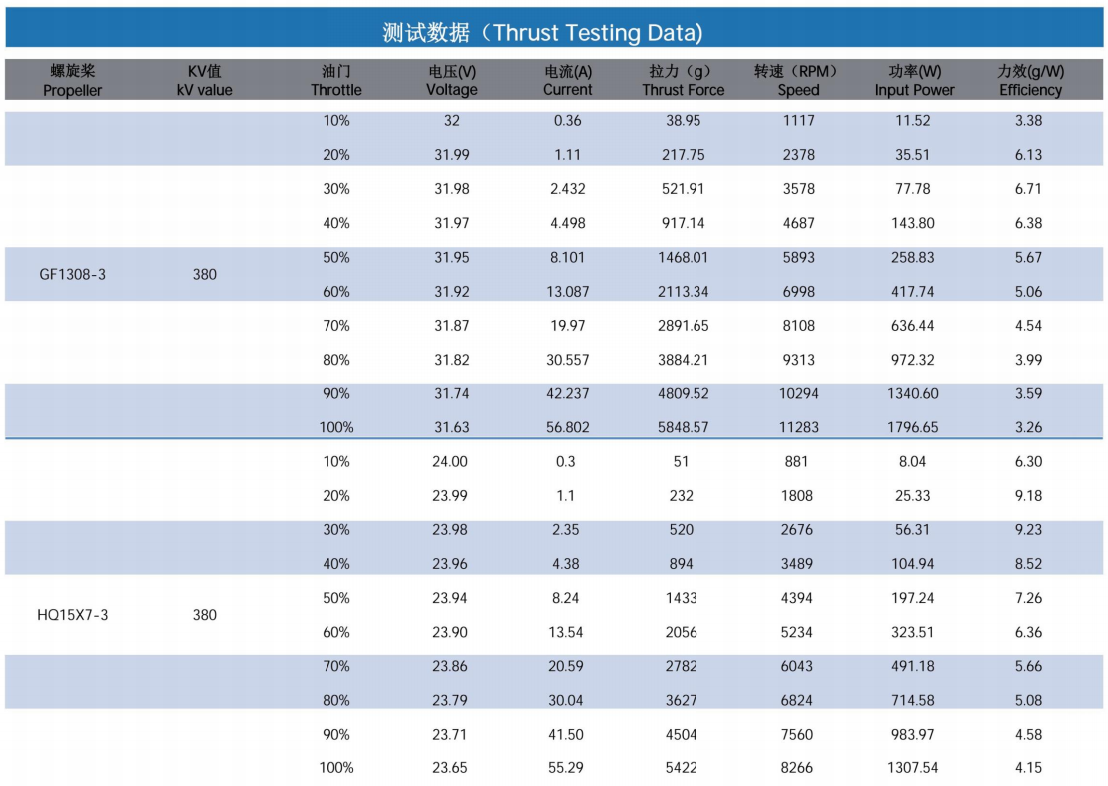

Pair with a quality HV ESC and matched large carbon-fiber propeller. Final prop diameter/pitch and system voltage should be chosen by mission profile and verified with thrust-stand data.
