The LN5313 380KV brushless drone motor is built for professional multi-rotor UAVs requiring high torque, stable performance, and long-endurance flight. It supports 13″–15″ propellers and 6S–8S batteries, making it ideal for aerial surveying, agriculture, and heavy-lift missions.
Contact Us for Pricing
Motor Selection Help

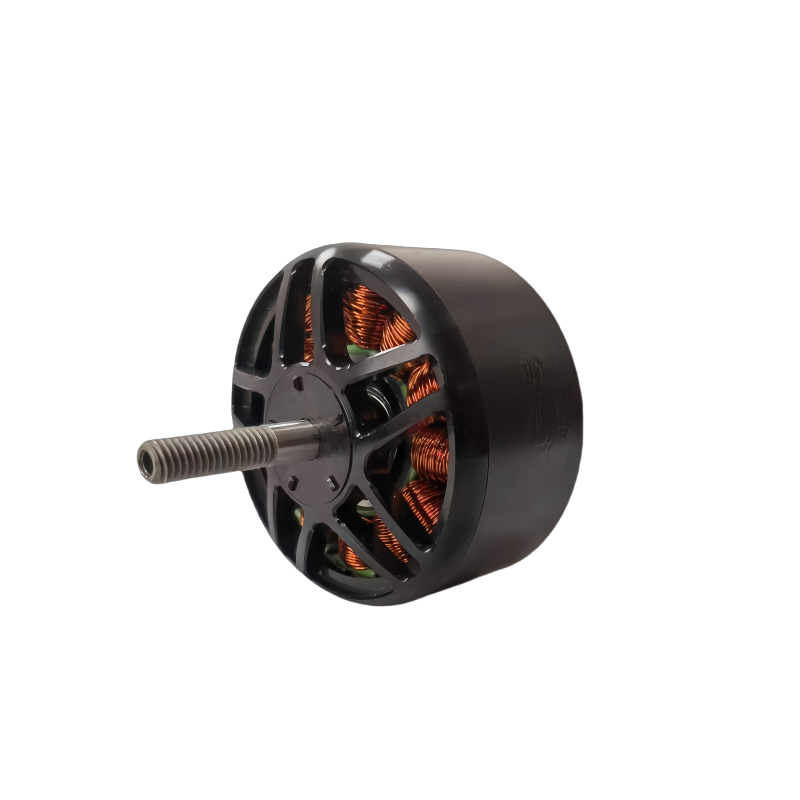

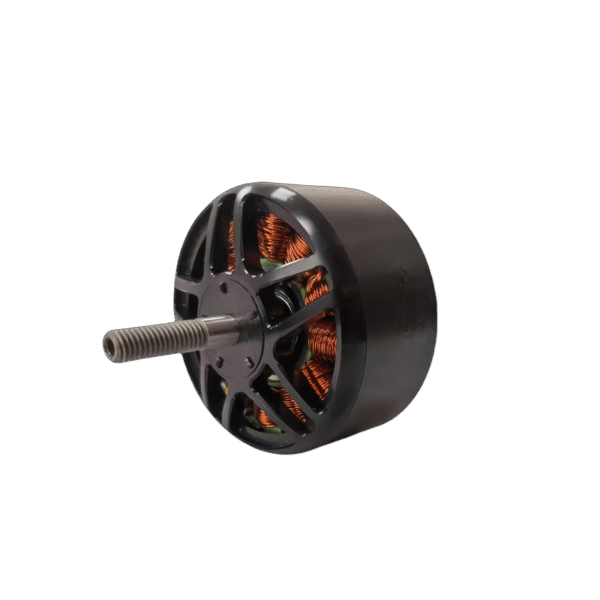

The LN5313 Brushless Drone Motor is a powerful 380KV outrunner motor engineered for industrial and commercial UAV applications. Designed for multi-rotor drones handling large payloads and extended flight durations, it’s the ideal choice for aerial mapping, precision agriculture, cargo delivery, and infrastructure inspection.
Featuring a robust stator size of φ42*14 and a well-balanced KV rating of 380, the LN5313 offers exceptional thrust-to-efficiency performance, with thrust exceeding 5.8kg under optimal conditions. It supports 13–15 inch propellers and operates efficiently with 6S to 8S LiPo batteries, offering strong compatibility for various drone platforms.
Built with precision CNC-machined aluminum housing, low-resistance windings, and high-temperature magnets, the motor ensures durability, thermal stability, and consistent performance under continuous high-load operation. Each unit undergoes dynamic balancing to minimize vibration and improve flight stability.
Thanks to its excellent efficiency rating (up to 9.23 g/W) and wide throttle response range, the LN5313 delivers both power and control. It is perfectly suited for developers building heavy-duty UAV systems or upgrading for higher payload capacity.
Whether you’re operating in agriculture, logistics, or inspection, the LN5313 offers a reliable, high-performance propulsion solution trusted by drone professionals worldwide.
| Max. P(W) | Voltage(V) | Max. I.(A) | KV | No-load Current(A) | Resistance(mΩ) | Poles | Motor Dim.(mm) | Stator Dim.(mm) | Mounting (mm) | N.W.(g) | Prop.(inch) | |
| 1810 | 25.2~33.6 | 65 | 380 | 0.8 | 25 | 14 | φ49*32.5 | φ42*14 | M4- 30*30 | 246 | 13″~15″ | |
| Thrust Testing Data | ||||||||
| Propeller | kV Value | Throttle(%) | Voltage(V) | Current(A) | Thrust Force（g） | Speed（RPM） | Power(W) | Efficiency(g/W) |
| GF1308-3 | 380 | 10% | 32 | 0.36 | 38.95 | 1117 | 11.52 | 3.38 |
| 20% | 31.99 | 1.11 | 217.75 | 2378 | 35.51 | 6.13 | ||
| 30% | 31.98 | 2.432 | 521.91 | 3578 | 77.78 | 6.71 | ||
| 40% | 31.97 | 4.498 | 917.14 | 4687 | 143.8 | 6.38 | ||
| 50% | 31.95 | 8.101 | 1468.01 | 5893 | 258.83 | 5.67 | ||
| 60% | 31.92 | 13.087 | 2113.34 | 6998 | 417.74 | 5.06 | ||
| 70% | 31.87 | 19.97 | 2891.65 | 8108 | 636.44 | 4.54 | ||
| 80% | 31.82 | 30.557 | 3884.21 | 9313 | 972.32 | 3.99 | ||
| 90% | 31.74 | 42.237 | 4809.52 | 10294 | 1340.6 | 3.59 | ||
| 100% | 31.63 | 56.802 | 5848.57 | 11283 | 1796.65 | 3.26 | ||
| HQ15X7-3 | 380 | 10% | 24 | 0.3 | 51 | 881 | 8.04 | 6.3 |
| 20% | 23.99 | 1.1 | 232 | 1808 | 25.33 | 9.18 | ||
| 30% | 23.98 | 2.35 | 520 | 2676 | 56.31 | 9.23 | ||
| 40% | 23.96 | 4.38 | 894 | 3489 | 104.94 | 8.52 | ||
| 50% | 23.94 | 8.24 | 1433 | 4394 | 197.24 | 7.26 | ||
| 60% | 23.9 | 13.54 | 2056 | 5234 | 323.51 | 6.36 | ||
| 70% | 23.86 | 20.59 | 2782 | 6043 | 491.18 | 5.66 | ||
| 80% | 23.79 | 30.04 | 3627 | 6824 | 714.58 | 5.08 | ||
| 90% | 23.71 | 41.5 | 4504 | 7560 | 983.97 | 4.58 | ||
| 100% | 23.65 | 55.29 | 5422 | 8266 | 1307.54 | 4.15 | ||
