Choosing the best motor for a drone in 2025 means looking at important things. You should check the KV rating, stator size, thrust, battery voltage, propeller size, drone type, and how you want to fly. The table below shows why each thing matters for different drones:
| Factor | Description | Importance in 2025 |
|---|---|---|
| KV Value | Motor’s RPM per volt under no-load conditions | Low KV motors (80–200 KV) give more torque in agricultural drones |
| Thrust-to-Weight Ratio | Total thrust divided by takeoff weight | Plant protection drones: 1.8–2.5; inspection drones: 2.0–3.0 |
| Stator Size | Size (diameter × height) | Sizes vary by payload capacity |
| Input Voltage | Voltage configurations | 6S for small, 12S for medium, 14S/16S for large drones |
| Efficiency | Performance at different RPMs and thrust levels | Above 80% efficiency is best |
You can pick the right motor for a drone by following easy steps. Retek Motion is a trusted company in the drone motor business. Customers like its good product quality, fair prices, and steady performance. You will find simple steps and expert tips to help you choose the best motor.
Key Takeaways
- Know what the KV rating means. High KV motors spin faster but have less power to lift. Low KV motors spin slower but can lift heavier things.
- Figure out the thrust-to-weight ratio. Try to get a 2:1 ratio for steady flying. Your motors should make twice the thrust your drone needs to lift.
- Match the motor size with the propeller. Use high KV motors with small propellers for more speed. Use low KV motors with big propellers to lift better.
- Make sure the battery voltage fits the motor. The battery voltage must match what the motor needs. This helps stop the motor from getting too hot or working badly.
- Think about what your drone will do. Pick motors for speed if you want to race. Pick motors for steadiness if you want smooth filming. Different uses need different motors.
Motor for a Drone: Key Specs Explained
KV Rating and RPM
When picking a motor for a drone, look at the KV rating first. KV means how many times the motor spins for each volt. If the KV rating is high, the motor spins faster but has less strength. If the KV rating is low, the motor spins slower but has more strength. This is important for different drone jobs.
Tip: Racing drones use high KV motors for fast starts. Heavy-lift drones use low KV motors for strong lifting.

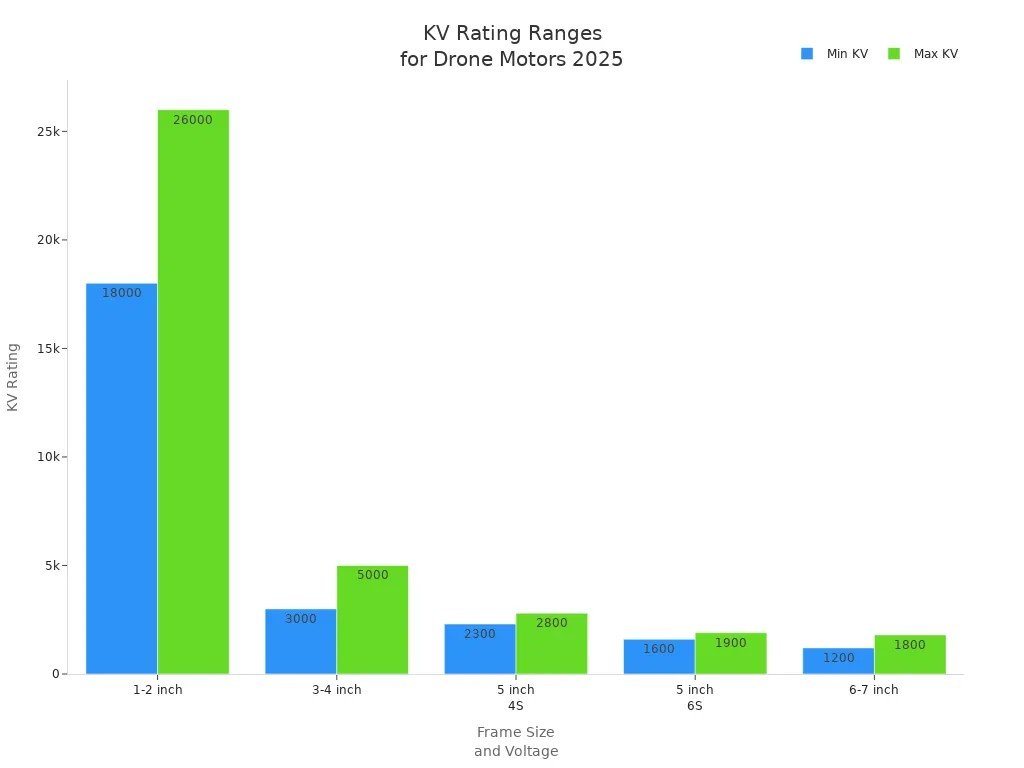

The table below shows KV ratings for different drone sizes and uses in 2025:
| Frame Size | Voltage | KV Rating Range | Propeller Size |
|---|---|---|---|
| 1-2 inch | 1S-2S | 18,000-26,000 | 31-65mm |
| 3-4 inch | 3S-4S | 3,000-5,000 | 3-4 inch |
| 5 inch | 4S | 2,300-2,800 | 5 inch |
| 6S | 1,600-1,900 | ||
| 6-7 inch | 6S-8S | 1,200-1,800 | 6-7 inch |
| 8-10 inch | 6S-8S | Low-KV (e.g., 28xx/31xx) | 8-10 inch |
Small drones use high KV motors for speed. Big drones use low KV motors for more strength. The table below shows how KV rating changes RPM and strength:
| KV Rating | RPM Characteristics | Torque Characteristics |
|---|---|---|
| High | Fast RPMs | Low Torque |
| Low | Slow RPMs | High Torque |
- High KV ratings make motors spin fast, good for racing drones.
- Low KV ratings give more strength, good for lifting heavy things.
- Each motor works best at a certain speed.
Stator Size and Torque
The stator is the part inside the motor that makes it turn. When you look at a motor for a drone, you see stator size as diameter × height (like 2207 means 22mm wide and 7mm tall). Bigger stators give more strength and can use bigger propellers.
| Stator Size Type | Impact on Torque Output |
|---|---|
| Larger Diameter | Higher base torque, can spin larger/higher pitch props |
| Larger Height | Greater power reserve at high RPM, stronger sustained output capability |
- Bigger stators make more strength, help keep the drone steady, and carry more weight.
- Smaller motors are lighter and react faster, but make less push.
Stator size also changes how well the motor works and stays cool. The table below shows this:
| Stator Size Aspect | Effect on Motor Efficiency | Effect on Heat Dissipation |
|---|---|---|
| Larger Diameter | Stronger torque, higher efficiency | Enhances heat dissipation capability |
| Greater Height | Increases load-bearing capacity | Affects overall thermal management |
Note: For longer flights and cooler motors, pick a motor for a drone with a bigger stator.
Thrust and Weight Calculation
Thrust is the force that lifts the drone up. You need enough thrust to lift the drone and anything it carries. The thrust-to-weight ratio shows how strong your drone is. Most quadcopters work best with a ratio of 2:1. This means the motors should make twice as much thrust as the drone weighs.
| Drone Type | Recommended Thrust-to-Weight Ratio |
|---|---|
| Hybrid VTOL UAV | 1.2 – 1.5 |
| Minimum Requirement | 1.05 |
| Quadcopter | 2:1 |
To find the right thrust for your drone, do these steps:
- Add up the weight of the frame, motors, ESCs, flight controller, camera, battery, and payload.
- Check how much thrust each motor can make from the specs.
- Use the same units for weight and thrust (Newtons are best).
- Divide total thrust by total weight. For example, if your quadcopter weighs 1000g (about 9.8N) and each motor makes 500g of thrust (about 4.9N), four motors make 19.6N. Your thrust-to-weight ratio is 2:1.
Tip: Try to get a thrust-to-weight ratio above 1.5 for safe and steady flying.
Battery Voltage Compatibility
Battery voltage must match your motor for a drone. Using the wrong voltage can hurt your motor or make it work badly. Here are the usual battery voltages for drones:
| Battery Type | Full Voltage (V) | Nominal Voltage (V) | Minimum Safe Voltage (V) | Typical Applications |
|---|---|---|---|---|
| 3S | 12.6 | 11.1 | 9.0 (recommended 9.9) | FPV drones, RC cars, model airplanes |
| 4S | 16.8 | 14.8 | N/A | High-performance drones, FPV, heavy-duty robotics |
| 6S | 25.2 | 22.2 | N/A | Professional drones, race drones, industrial use |
It is important to match battery voltage to your motor for a drone. If you use a battery with too much voltage, the motor can get too hot and break. If the voltage is too low, the drone may not fly well.
| Aspect | Explanation |
|---|---|
| Battery Voltage Influence | Higher voltage makes the motor spin faster at the same KV rating, changing thrust and efficiency. |
| KV Rating Impact | KV rating sets how fast the motor spins at a certain voltage, which is important for good performance. |
| High KV with High Voltage | Can cause too much current, overheating, and shorter life, so you must choose carefully. |
Tip: Always check the voltage rating on your battery and motor for a drone before flying.
If you know these key specs, you can pick the right motor for a drone. This helps you get the speed, lifting power, or flight time you want.
Matching Motor, Propeller, and Drone Size
Choosing the right combination of motor, propeller, and drone size is essential for safe and efficient flight. Each part affects how your drone performs in the air. You need to understand how these components work together to get the best results.
Propeller Size and Motor KV
The size of your propeller and the KV rating of your motor must match. Motor KV tells you how fast the motor spins for each volt. High KV motors spin faster but have less torque. Low KV motors spin slower but provide more torque. You should use high KV motors with small propellers. These motors reach high RPMs and work well for light drones that need quick responses. Low KV motors pair better with large propellers. They deliver more torque, which helps lift heavier loads and keeps the drone stable.
Tip: Lower pitch propellers benefit from higher RPMs, giving you better control and smoother flight. Higher pitch propellers work best with low KV motors, making your drone more efficient but sometimes less responsive.
Here is a quick guide to help you match motor KV and propeller size:
| Motor KV | Propeller Size | Characteristics |
|---|---|---|
| High KV | Small Diameter | High RPM, low torque, good for light loads |
| Low KV | Large Diameter | Low RPM, high torque, better for heavy props |
- High KV motors are ideal for smaller props because they can spin fast.
- Low KV motors are more effective with larger props, providing better torque and thrust.
When you select a motor for a drone, always check the manufacturer’s recommendations for propeller size and KV rating. This ensures your drone flies smoothly and safely.
Drone Weight and Thrust Rule
You must consider the weight of your drone when choosing a motor and propeller. The thrust-to-weight ratio is a key rule in drone design. Most drones need a thrust-to-weight ratio of 2:1. This means your motors should produce twice the thrust needed to lift your drone at its heaviest.
- The standard thrust-to-weight ratio for drones is 2:1.
- Motors should produce double the thrust required for hovering at maximum weight.
- To find the minimum thrust needed:
Min. Thrust = Total Weight (Drone + Payload) × Gravity (9.81 m/s²) - For stable flight, use this formula:
Total Required Thrust = Total Weight × Gravity × Safety Factor (multiply by 2 for stability)
Drone designers use this rule to make sure drones can take off, hover, and maneuver safely. Racing drones often need much higher thrust-to-weight ratios, sometimes 10:1 or more, for fast acceleration and sharp turns. Freestyle drones work best with at least a 5:1 ratio for better control and tricks.
The thrust your drone needs depends on many factors, such as motor power, propeller design, and even the weather. Understanding these details helps you pick the right motor and propeller for your flying style.
Popular Motor Sizes for Common Drones
You will find many motor sizes in the drone market. The best size depends on your drone type and what you want to do. Here is a table showing popular motor sizes and KV ranges for different drones:
| Drone Type | Motor Sizes | Optimal KV Range |
|---|---|---|
| 5″ Racing Drone | 2205, 2206, 2207, 2208, 2306, 2308 | 4S: 2,500-3,000 KV; 6S: 1,900-2,300 KV |
| 5″ Freestyle Drone | 2206, 2207, 2208, 2306, 2307, 2308 | 4S: 2,300-2,700 KV; 6S: 1,700-2,100 KV; 8S: 1,500-1,700 KV |
| 7 Inch Drone | 2408, 2508, 2806.5 | 4S: 1,600-1,900 KV; 6S: 1,000-1,400 KV |
| 8 Inch Drone | 2808, 2810, 2814, 3108, 3110, 3115, 3214 | 6S: 900-1,200 KV; 8S-10S: 600-900 KV |
Brushless motors have become the standard for both consumer and professional drones. These motors give you higher efficiency, longer flight times, and the ability to carry heavier payloads. Consumer drones now use smaller, lighter, and more efficient motors to improve control and extend flight time. The popularity of drone racing and aerial photography has also driven the demand for specialized motors.
Professional drones need motors that can handle heavy loads and long flights. These motors focus on efficiency and power density to meet the needs of commercial tasks like surveying and mapping.
Note: Always check that your motor, propeller, ESC, and battery work well together. The ESC should handle 1.2 to 1.5 times the peak current of your motor. Your battery must support the motor’s voltage and current needs.
Matching the right motor for a drone with the correct propeller and frame size ensures your drone flies safely and performs at its best.
Choosing by Drone Type and Flying Style
Racing vs. Cinematic Drones
Pick motors that fit your drone’s job. Racing drones need high-KV motors. These motors spin fast and help you speed up quickly. You can turn fast and make sharp moves. Cinematic drones use lower KV motors. These motors give steady thrust and keep the drone stable. This helps you get smooth video. Efficiency is more important for cinematic drones. Longer flights let you record better footage.
| Type of Drone | KV Rating | Thrust Requirement | Efficiency Focus |
|---|---|---|---|
| Racing Drones | High KV | High thrust for speed | Less emphasis on efficiency |
| Cinematic Drones | Lower KV | Steady thrust for stability | High efficiency for longer flight times |
Racing drones need high-KV motors for quick speed and sharp turns. These motors use more power and get hotter. Cinematic drones use bigger, lower KV motors. These motors can carry heavy cameras and keep the drone steady.
Tip: Pick high-KV motors for fast flying and quick turns. Choose lower KV motors for smooth video and longer flights.
Heavy-Lift and Long-Range Needs
Heavy-lift drones need strong motors. Look for big stators and low KV ratings. These motors give high torque and spin big propellers. You get more lifting power and better balance. Long-range drones need efficient motors too. Motors with over 85% efficiency help you fly farther and carry more weight.
| Specification | Heavy Lift Drones | Long Range Drones |
|---|---|---|
| Motor Size | 4114 – 8120 | N/A |
| KV Range | 80 – 400KV | N/A |
| Voltage Platform | 12S – 24S | N/A |
| Propeller Diameter | 20″ – 32″ | N/A |
| Thrust per Motor | 3–5kg or more | N/A |
| TWR | Approx. 2:1 – 3:1 | N/A |
| Efficiency | Higher than 85% | Higher than 85% |
| Characteristics | High torque, robust construction, strong heat resistance | High torque, robust construction, strong heat resistance |
Big stators give more torque for heavy loads. Low KV motors work best with large propellers. Motors with high efficiency and good heat resistance last longer.
Application-Based Motor Selection
Match your motor to your drone’s job. For mapping, delivery, or inspection, follow these steps:
- Pick motors based on how much weight your drone carries, how long it flies, and which propellers fit.
- Try for a thrust-to-weight ratio of 3:1 or 4:1 for aerial video. This gives you better control and lets you carry extra gear.
- Think about motor size and KV rating. These change torque and RPM, which help you match motors with propellers.
Retek Motion gives expert advice and special motors for every drone job. You can trust their help to find motors that keep your drone safe and working well.
Note: Always pick motors that fit your drone’s job. The right motor helps you fly longer, lift more, and stay safe.
Power, Efficiency, and Final Tips
Balancing Power and Flight Time
You want your drone to fly for a long time. You also want it to be strong and fast. When you pick a motor, you must find a good balance. More power gives your drone more thrust and better flying. But more power also uses more energy. This can make your drone’s flight time shorter. If you use less power, your drone can fly longer. But it might not go as fast or turn as well. You have to choose what is most important for your drone—speed or how long it flies.
Designers use some tricks to keep motors strong and efficient:
- Use wide and short paths for high current. This helps lower resistance and stops voltage drops.
- Choose good power parts, like MOSFETs and capacitors with low RDS(on). These parts help motors work better.
- Add things like heat sinks or thermal vias. These keep motors cool and help them work well.
Tip: Always think about what your drone needs before you pick a motor. A good balance of power and efficiency gives you the best results.
Avoiding Common Mistakes
Many people make mistakes when picking motors. These mistakes can cause problems for your drone. The table below shows some common mistakes and what can happen:
| Mistake | Consequence |
|---|---|
| Underpowered motors | Can get too hot and make flights short |
| Incompatible ESCs | Might burn out or stop working during flight |
| Improper KV selection | Can make your drone unstable or waste energy |
| Neglecting real thrust data | Always check the manufacturer’s datasheets |
You can stop these problems by checking all motor specs. Make sure every part fits your drone’s needs.
Quick Checklist Before Buying
Before you buy a motor, use this checklist. It helps you avoid mistakes and keeps your drone safe:
| Benefit | What It Means |
|---|---|
| More uptime | Finding bad motors early keeps your drone flying and lets you fix things. |
| Saves money | Catching motor problems early lowers repair and maintenance costs. |
| Saves energy | Fixing power problems helps your drone use less energy. |
| Better safety | Stops sudden failures and finds electrical issues before they get worse. |
Note: Using a checklist and asking experts for help lets you pick the right motor, save money, and keep your drone safe in the air.
You can pick the best motor for your drone by doing these things: First, figure out what kind of drone you have and how you want to fly it. Next, add up the weight and find the thrust-to-weight ratio. Then, match the KV value with the right propeller size and battery voltage. After that, look at the current specs and make sure there is a safety margin. Finally, check if the motor size fits your drone frame.
When you match motor specs to your drone, it flies better and works more reliably. Racing drones use high KV motors to go fast. Long-range drones use lower KV motors to save energy. Retek Motion gives good advice and sells quality motors. Use your checklist and trust expert help. You can choose the right motor for your drone and feel sure about it! 🚁
FAQ
What does the KV rating mean for a drone motor?
KV rating shows how many times your motor spins for each volt. High KV means faster spinning and less torque. Low KV gives you more torque and slower spinning. Always match KV to your drone’s needs.
How do I know if my motor matches my battery?
Check the voltage range on your motor and battery. If you use a battery with higher voltage than your motor supports, you risk overheating. Always use a battery within the motor’s recommended voltage.
Can I use any propeller with my motor?
Tip: Always check the motor’s recommended propeller size. Using a propeller that is too large can overheat your motor. A small propeller may not give enough thrust.
Why does my drone need a thrust-to-weight ratio above 1:1?
A thrust-to-weight ratio above 1:1 lets your drone lift off, hover, and maneuver safely. Most drones work best with a 2:1 ratio. This gives you better control and stability.
