hoosing the right FPV drone motors starts with matching motor size, KV, torque, and efficiency to your drone’s frame, propeller, battery, and flight style. Recent data shows that as drone frame and prop sizes increase, you need larger brushless FPV drone motors with lower KV ratings for stable performance. For example:
| Frame Size | Prop Size | Motor Size Range | KV Range |
|---|---|---|---|
| 210mm | 5″ | 2205-2208, 2305-2306 | 2300KV-2600KV |
Understanding motor KV helps you balance power and efficiency for your FPV drone motors needs. Brushless motors with optimized stator volume deliver better torque and control, especially for agile FPV flight. When you know how to choose FPV drone motors, you can select the ideal brushless motor for your unique build, whether for racing, freestyle, or cinematic flying.
Key Takeaways
- Choose FPV drone motors based on your drone’s type and flying style, such as racing, freestyle, or cinematic, to get the right balance of speed, power, and stability.
- Match motor size, KV rating, and stator size to your drone’s frame, propeller, and battery to ensure efficient thrust and good flight control.
- Use a proper thrust-to-weight ratio to keep your drone stable and agile; typically, 1.5:1 to 2:1 works well, with higher ratios for racing drones.
- Pair your motor KV with your battery voltage carefully to avoid overheating and improve motor efficiency; lower KV suits higher voltage batteries and larger props.
- Test your motor and propeller setup before flying to confirm it delivers enough thrust without overheating, ensuring a reliable and enjoyable flight experience.
Drone Type & Style
Racing, Freestyle, Cinematic
When you select FPV drone motors, you must first consider the type of flying you plan to do. Racing, freestyle, and cinematic FPV drones each demand different motor characteristics. Racing drones focus on speed and rapid acceleration. You need motors that deliver high thrust and quick response. Freestyle drones require a balance between power and durability, as you perform acrobatic tricks and stunts. Cinematic drones prioritize smooth, stable flight and longer battery life to capture high-quality video, so you need motors that provide steady thrust and efficiency.
Here’s a comparison of the main features for each FPV drone style:
| Feature | Racing Drones | Freestyle Drones | Cinematic Drones |
|---|---|---|---|
| Purpose | High-speed racing on tracks | Acrobatic tricks and stunts | Smooth, high-quality video capture |
| Frame Size | Small (3″-5″) for agility | Medium (5″-7″) for durability | Large (7″+) for stability and payload |
| Durability | Lightweight but fragile | Crash-resistant | Heavy-duty for stability |
| Flight Speed | 80-120 km/h | 50-80 km/h | 30-60 km/h |
| Flight Stability | Less stable, prioritizes speed | Balanced stability and control | Highly stable for filming |
| Battery Life | 2-5 min | 3-6 min | 10-20+ min |
You can see that each FPV drone category has unique requirements for the right size motor. Racing drones need lightweight motors with high KV ratings for speed. Freestyle drones benefit from motors that balance thrust and resilience. Cinematic drones require larger, lower KV motors to support heavy cameras and maintain stability.
Weight & Frame Size
The size of the drone and its weight play a critical role in motor selection. Larger frames allow you to use bigger propellers, which need more powerful motors to generate efficient thrust. If you want to choose the right size motor, always match the motor’s stator size and KV rating to your frame and propeller size. This ensures you achieve the ideal thrust-to-weight ratio for your FPV build.

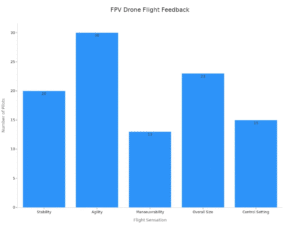

Pilot feedback and studies show that symmetrical frames often provide more stability, while non-symmetrical frames offer greater agility. The chart below illustrates how pilots perceive flight characteristics based on frame geometry:
You should aim for a thrust-to-weight ratio between 4:1 for racing and 2:1 for cinematic drones. This ratio ensures your FPV drone has enough power for your chosen style without sacrificing efficiency or control.
FPV Drone Motor Specs
Stator Size
When you select a brushless motor for your FPV build, stator size stands out as a key factor. The stator’s diameter and height determine how much torque and power your motor can produce. Larger stators deliver more torque, which helps your drone spin bigger props and handle heavier loads. This extra torque also improves throttle response, making your FPV drone more agile. However, bigger stators add weight and can draw more current, which may reduce flight time. You should always match the stator size to your frame and propeller to choose the right size motor for your needs.
Tip: Motor shape affects torque. A wider stator (larger diameter) increases torque, while a taller stator (greater height) boosts power and efficiency. Well-balanced brushless motors with quality bearings also reduce vibration, improving flight stability and video quality.
KV Rating
Understanding motor KV helps you predict how your FPV drone motor will perform. The KV rating tells you how many revolutions per minute (RPM) the motor spins for each volt from your battery. You can estimate RPM using the formula:
RPM = KV × Voltage
High KV motors spin faster, giving you quick acceleration and top speed. These motors work best for lightweight racing drones. Low KV motors spin slower but provide more torque, making them ideal for heavy-lift or cinematic drones. Empirical data shows that you can estimate thrust and flight behavior by combining KV rating, battery voltage, and propeller size. This approach lets you optimize your FPV drone before you even build it.
Torque & Efficiency
Torque and efficiency play a huge role in advanced motors performance. Torque in FPV drone motors links directly to stator size. Larger brushless motors generate more torque, which improves responsiveness but increases power consumption. Motor efficiency depends on speed and heat management. Motors that spin faster and dissipate heat well maintain higher efficiency. If you combine a high torque brushless motor with a high-pitch propeller, you get more speed and responsiveness, but you lose some efficiency. Heat buildup can also lower motor efficiency and shorten the life of your brushless motor. Always consider how motor shape affects torque and how cooling features can help maintain performance.
- Key factors that impact motor performance:
- Motor torque affects throttle response and supports larger props.
- Fast motor response time enables precise FPV maneuvers.
- Good heat management improves motor efficiency and durability.
- Thrust-to-weight ratio guides your FPV drone’s power and stability.
By focusing on stator size, KV rating, and torque versus efficiency, you can select FPV drone motors that match your flying style and maximize your drone’s potential.
How to Choose FPV Motors
Propeller & Battery Match
Selecting the right FPV drone motor starts with understanding how propellers and batteries interact with your motor choice. You need to match the motor KV to your battery voltage to achieve the best balance of thrust, efficiency, and reliability. If you use a higher voltage battery, such as a 6S, you should choose the right KV by selecting a lower KV motor. This approach prevents overheating and improves motor efficiency. For a 4S battery, you want a higher KV motor to reach similar RPM and thrust.
Here is a quick reference table to help you pair motor KV with battery voltage for common FPV builds:
| Drone Type | Frame Size | Recommended Motor Size | KV Range for 4S | KV Range for 6S | Battery Voltage | Use Case |
|---|---|---|---|---|---|---|
| Freestyle/Racing | 5″-5.5″ | 2207, 2306, 2306.5 | 2100-2750 | 1700-2100 | 4S-6S | Standard FPV, freestyle, racing |
| Long Range | 7″ | 2408, 2508, 2806.5 | 1600-1900 | 1000-1400 | 4S-6S | Long-range FPV, endurance flights |
You can see that higher voltage batteries require lower KV motors. This pairing helps you avoid excessive heat and poor motor performance. If you use a 6S battery with a high KV motor, you risk burning out your brushless motor. Always check the manufacturer’s recommendations for your FPV drone motor and battery combination.
When you select a propeller, consider both its size and pitch. Larger props need more torque, so you should use a brushless motor with a bigger stator and lower KV. Smaller props spin faster and work best with high KV motors. The right propeller and battery match ensures your FPV drone motors deliver smooth, responsive thrust for your flying style.
Tip: Always test your motor and propeller combination on the bench before your first flight. This step helps you confirm that your setup produces enough thrust without overheating.
Thrust & Weight Balance
Achieving the correct thrust-to-weight ratio is essential for stable and agile FPV flight. You want your FPV drone motor to provide enough thrust to lift the drone easily and perform maneuvers, but not so much that you waste energy or lose control. The recommended thrust-to-weight ratio for most FPV drones falls between 1.5:1 and 2:1. For racing drones, you may want a ratio of 3:1 or higher for maximum acceleration.
To calculate the right thrust for your build, follow these steps:
- Weigh your complete drone, including the frame, battery, camera, and all accessories.
- Decide on your target thrust-to-weight ratio based on your flying style. For freestyle or cinematic FPV, use 1.5:1 to 2:1. For racing, use 3:1 or higher.
- Multiply your drone’s total weight by the chosen ratio to find the total required thrust.
- Divide the total thrust by the number of motors to get the minimum thrust per motor.
- Select a brushless motor and propeller combination that can deliver at least this much thrust per motor.
For example, if your drone weighs 700 grams and you want a 2:1 thrust-to-weight ratio, you need 1400 grams of total thrust. With four motors, each motor must produce at least 350 grams of thrust.
You can use online thrust calculators or manufacturer data to estimate motor thrust for different propeller and battery combinations. For the most accurate results, test your brushless motors and props on a thrust stand. This method lets you measure real-world thrust and confirm your FPV drone motor selection meets your needs.
Here is a table showing how motor size, KV, propeller size, and drone weight interact across different FPV classes:
| Drone Class | Propeller Size (inches) | Motor Size | Motor KV Range | Battery Cell Count | Dry Weight Range (g) |
|---|---|---|---|---|---|
| Tinywhoop 65mm | 1.2″ (31mm) Triblade | 0702, 0802 | 23000-30000 | 1S | 16-22 |
| Tinywhoop 75mm | 1.6″ (40mm) Triblade | 0802, 1002 | 20000-23000 | 1S | 20-30 |
| Tinywhoop 75mm | 1.6″ (40mm) Triblade | 0802, 1002 | 12000-14000 | 2S | 30-50 |
| Whoop 85mm | 2″ Triblade | 1003,1103 | 11000-15000 | 2S | 70-90 |
| Ultralight | 5″ Two-Blade | 2004,2204,2205 | 2300-3000 | 4S | 150-250 |
| Freestyle | 6″ | 2207-2408 | 2100-2500 | 4S | 300-450 |
| Long Range | 7″ | 2806-3106.5 | 980-1900 | 4S or 6S | 350-500 |
This table shows that as propeller size and drone weight increase, you need a larger brushless motor with lower KV. High KV motors work best with smaller props and lighter drones. Always consider the total weight and propeller size when you choose the right size motor for your FPV build.
- Lower KV brushless motors pair with larger, slower-turning props for endurance and stability.
- Higher KV motors pair with smaller, faster-turning props for speed and agility.
- Voltage and current limits affect motor performance and reliability.
- Real-world testing and tuning help you optimize your FPV drone motor setup.
Note: Matching your FPV drone motor, propeller, and battery voltage to your drone’s weight and flight style ensures you get the best thrust, efficiency, and control.
If you want to know how to choose FPV motors for your specific needs, always start with your drone’s weight and intended use. Then, select a brushless motor and propeller combination that delivers the right thrust-to-weight ratio. This approach guarantees your FPV drone motors will perform reliably and efficiently, whether you fly freestyle, race, or capture cinematic footage.
FPV Drone Motors Recommendations
Motor Recommendations by Build
You want the optimal motor for your build, so you should start with proven motor recommendations for popular FPV classes. For 5-inch freestyle and racing drones, you will find that 2207 and 2306 brushless motors deliver the best balance of thrust, efficiency, and control. If you fly with 6S batteries, select motors in the 1700-1900 KV range for longer flight times or more power. For 4S setups, 2400 KV motors work well. Long-range 7-inch builds benefit from 2807 brushless motors with lower KV values, which help you achieve stable flight and endurance.
Here are practical motor recommendations for common FPV builds:
- 5-inch freestyle: 2207 or 2306, 1700-1900 KV (6S) or 2400 KV (4S)
- 5-inch racing: 2207, 2306, or 2207.5, 1900-2100 KV (6S) or 2500-2700 KV (4S)
- 7-inch long-range: 2807, 1000-1400 KV (6S)
You can choose budget-friendly options like the Emax Eco II or iFlight Xing-E 2207 if you expect frequent crashes. For higher performance, the T-Motor Velox Veloce V2207.5 V2 and iFlight Xing2 2207 stand out for their torque, durability, and advanced motors performance. The AOS Supernova motor uses AI optimization for higher thrust and efficiency, though it comes at a premium price.
Quality & Features
When you select FPV drone motors, you should look for features that improve reliability and flight experience. High-quality brushless motors use titanium alloy shafts and military-grade magnets for better durability and control. Improved shaft design and strong magnets, as seen in the T-Motor Velox Veloce V2207.5 V2, boost power and responsiveness. The iFlight Xing2 2207 offers quick response and top-tier performance, making it a favorite for freestyle pilots.
You should always check the weight, thrust, efficiency, and torque ratings. These factors directly affect your drone’s thrust-to-weight ratio and flight style. Lower KV motors generally last longer and make battery management easier. Recent advancements in brushless motor design, such as AI-optimized stators, help you achieve more efficient and powerful flights.
Tip: Always match your motor recommendations to your propeller and battery setup for the best results with FPV drone motors.
You can choose the best FPV drone motors by matching motor specs to your frame, battery, and flying style. Focus on battery compatibility, thrust-to-weight ratio, and efficiency ratings. Testing RPM, temperature, and current draw helps you validate your FPV setup. Avoid common mistakes like underpowered motors or improper KV selection. Use these recommendations as a starting point, then adjust as you gain experience. Building and tuning FPV drones brings real satisfaction and lets you enjoy every flight.
