How many volts is a drone motor?

You will usually find that a drone motor operates within a voltage range of 11.1V to 44.4V, depending on the application. Most hobbyist and professional drones use batteries labeled as 3S, 4S, 6S, or even 12S, where each cell provides about 3.7V. Selecting the right voltage is essential for both performance and safety. If you use a higher voltage than recommended, the motor may overheat or become damaged. Always match your motor, battery, and electronic speed controller to ensure reliable and efficient operation.

• 3S (11.1V), 4S (14.8V), 6S (22.2V), 12S (44.4V) batteries are common.
• Higher voltages deliver more power for heavy or high-performance drones.
• Lower voltages help achieve longer flight times and better efficiency.

Key Takeaways

• Drone motors usually run on voltages between 11.1V and 44.4V, depending on the battery cells used.
• Choosing the right voltage and matching it with the motor and ESC ensures safe, efficient, and powerful drone performance.
• Higher voltage batteries give more speed and power but can cause overheating if not matched properly with motor KV ratings.
• Different drone types need different voltage and motor setups: racing drones use higher KV and moderate voltage, while heavy-lift drones use lower KV and higher voltage for more torque.
• Always check and match the voltage ratings of your motor, battery, and ESC to avoid damage and improve flight safety.

Drone Motor Voltage Basics

Voltage Range

You will find that the voltage range for a drone motor depends on the type and size of your drone. Most drone motors operate between 7.4V and 22.2V. This range matches the most common LiPo battery configurations: 2S (7.4V), 3S (11.1V), 4S (14.8V), and 6S (22.2V). Each LiPo cell provides a nominal voltage of 3.7V. For example, a 3S battery has three cells in series, giving you 11.1V. A 4S battery has four cells, totaling 14.8V. When fully charged, each cell reaches 4.2V, so a 4S battery can reach 16.8V at peak charge.

The voltage you choose directly affects the speed and power of your drone motor. Higher voltage batteries, such as 6S, deliver more power and allow your drone to reach higher speeds. However, you must ensure that your motor and electronic speed controller (ESC) can handle the voltage you select. Using a voltage outside the recommended range can cause overheating or damage.

Tip: Always check the voltage ratings for your drone motor, ESC, and battery before assembling your drone.

Here is a table that shows how voltage and motor KV ratings vary across different drone classes:

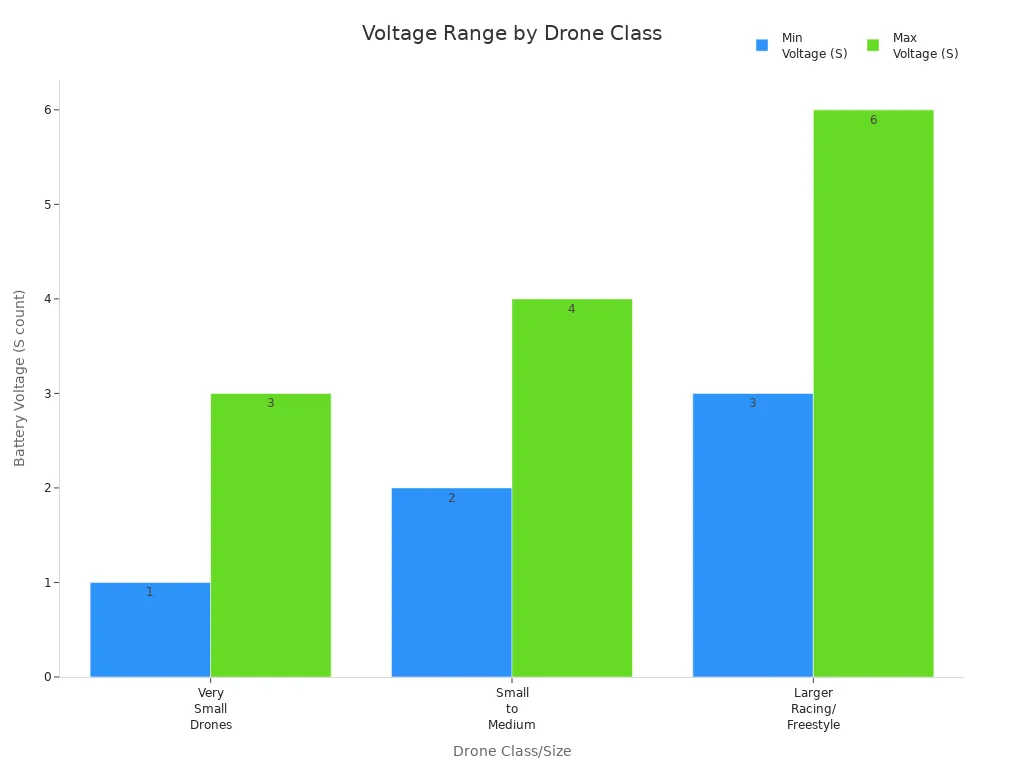

You can also visualize the voltage ranges for different drone classes in the chart below:

KV Rating

The KV rating is a key specification for every drone motor. KV stands for “RPM per Volt.” This means that if you apply one volt to a motor with a KV rating of 2,300, it will spin at 2,300 revolutions per minute (RPM) with no load. If you use a 14.8V battery, the same motor will theoretically spin at 34,040 RPM (2,300 KV × 14.8V).

Higher KV motors spin faster but generate less torque. These motors work best with smaller propellers and lighter drones. Lower KV motors spin slower but provide more torque, making them ideal for larger drones with bigger propellers. Matching the KV rating to your battery voltage and propeller size ensures efficient performance and prevents overheating.

Note: The actual RPM will be lower than the theoretical value because of load, friction, and ESC behavior.

Battery Types

The type and configuration of your battery play a major role in the voltage supplied to your drone motor. Most drones use LiPo (Lithium Polymer) or Li-ion (Lithium Ion) batteries. Both types have a nominal voltage of about 3.7V per cell. However, LiPo batteries can deliver higher current and maintain voltage better during aggressive flying. Li-ion batteries provide steadier voltage under moderate loads, which helps with longer, steady flights.

• Higher voltage batteries have more cells in series, which allows your drone motor to produce more power.
• Increased voltage batteries are heavier, which can reduce efficiency gains.
• Motors and ESCs must support the battery voltage; some only support specific cell counts or voltage ranges.
• Selecting the right battery voltage balances power output, weight, and compatibility for optimal performance.

Battery configuration also affects performance. For example, a 6S LiPo battery (six cells in series) provides 22.2V nominal voltage and up to 25.2V when fully charged. This higher voltage enables your drone motor to reach higher RPMs and power output, but only if your components are rated for it.

Always match your battery voltage to the specifications of your drone motor and ESC to avoid damage and ensure safe operation.

Why Voltage Matters

Speed and Torque

Voltage plays a direct role in how fast your drone motor spins and how much force it can deliver. When you increase the voltage, the motor spins faster because the KV rating multiplies with the voltage to determine the maximum RPM. For example, if you use a 4-cell LiPo battery (16.8 volts when fully charged) with an 880 KV motor, you get a maximum speed of 14,784 RPM. This relationship means that higher voltage or a higher KV rating will boost your motor’s speed.

However, speed is only part of the equation. Torque, or the twisting force that turns the propeller, depends on both the motor design and the current drawn. Larger motors with more torque can lift heavier payloads, but they also draw more current, which can reduce your drone’s flight time. You need to balance voltage, KV rating, and motor size to achieve the right mix of speed, torque, and efficiency for your drone’s purpose.

Tip: Always match your battery voltage and motor KV to your drone’s size and intended use. Too much speed without enough torque can make your drone unstable, while too much torque can drain your battery quickly.

Efficiency and Heat

The voltage you supply to your drone motor also affects how efficiently it runs and how much heat it generates. At low speeds, most of the energy entering the motor turns into heat instead of useful work. As the motor spins faster, efficiency improves, and less energy is lost as heat. This means that running your motor at the right voltage and speed helps keep it cool and extends its lifespan.

• Effective voltage in the motor phases is always equal to or less than the battery’s voltage.
• At higher speeds, the current drawn by the motor and the power supplied by the battery become more balanced, which boosts efficiency.
• DC motors generate less heat when spinning faster, so proper voltage selection reduces the risk of overheating.

If you use a voltage that is too high for your motor, you risk overheating and damaging the windings or magnets. If the voltage is too low, your drone may not have enough power to fly efficiently, and the motor could still overheat due to excessive current draw. Always check the recommended voltage range for your drone motor and avoid pushing it beyond its limits.

Note: Enclosed motors trap more heat than open motors, which can further reduce efficiency. Make sure your drone’s design allows for proper cooling.

Voltage for Different Drone Types

Racing Drones

Racing drones demand high speed and rapid acceleration. You typically use batteries with voltages from 3S (11.1V) to 4S (14.8V) and pair them with high KV motors, often around 2300 KV. This combination delivers fast motor speeds and sharp responsiveness, which are essential for racing performance. The table below summarizes the typical pairings and their effects:

Retek Motion offers high KV drone motors designed for racing, ensuring you get the speed and reliability needed for competitive flying.

Camera Drones

Camera drones focus on stability and smooth flight for capturing high-quality images and video. You often see battery voltages of 4S (14.8V) or 6S (22.2V) in these drones. The choice of voltage depends on the drone’s size and the need for longer flight times or more thrust. Most FPV cameras inside these drones use a voltage regulator to step down the input to 3.3V. Supplying a lower input voltage, usually around 12V nominal, helps keep the camera cool and reduces stress on the voltage regulator.

• 4S and 6S batteries are most common in camera drones.
• Higher voltage (6S) provides more thrust and speed, useful for larger or high-performance models.
• Lower voltage (4S) keeps the drone lighter and more agile, ideal for smaller or freestyle drones.
• Always match the voltage to your drone motor, ESC, and camera system for safe operation.

Retek Motion recommends selecting motors and ESCs that match your battery voltage and camera requirements for optimal performance and safety.

Heavy-Lift Drones

Heavy-lift drones require powerful motors and higher voltages to carry large payloads. You often use motors with lower KV ratings, such as 880 KV, paired with 4S (16.8V fully charged) or even higher voltage batteries. This setup allows the drone motor to generate more torque, which is necessary for lifting heavy equipment. For example, an 880 KV motor with a 4S battery can reach a maximum RPM of 14,784. Larger motors provide more torque but also draw more current, so you need robust batteries and ESCs.

• Larger motors increase torque and responsiveness but consume more power.
• Higher torque means higher amp draw, which can reduce flight time.
• Efficiency improves with higher RPM, but excessive heat can lower efficiency.
• Always size your motor and propulsion system based on your drone’s payload and intended use.

Retek Motion’s heavy-lift drone motors are engineered for high torque and reliability, making them suitable for industrial and commercial applications.

Matching Motor, Battery, and ESC

Compatibility

When you build or upgrade a drone, you must ensure that the motor, battery, and ESC work together safely and efficiently. Start by checking the voltage ratings for each component. The battery’s nominal voltage should match the voltage range supported by both the motor and the ESC. If you use a battery with a higher voltage than the ESC can handle, you risk catastrophic failure—often signaled by smoke or a sudden shutdown.

You should also consider the current draw. Calculate the maximum current your motor and propeller combination will require at full throttle. Select an ESC with a continuous current rating at least 20% higher than this value. For example, if your setup draws 40A, choose an ESC rated for at least 48A. This margin helps prevent overheating and extends the lifespan of your electronics.

• Match the battery’s voltage to the motor and ESC specifications.
• Choose a motor with a KV rating that fits your drone’s size and purpose.
• Select an ESC with a voltage and current rating that exceeds your system’s maximum requirements.
• Use batteries with a discharge rate (C-rating) high enough to supply the needed current during aggressive maneuvers.
• Consider battery weight, as heavier batteries can reduce agility.

Tip: Bench-test your setup at full load before flying. Monitor current draw and ESC temperature to confirm safe operation.

Safety Tips

You can improve reliability and safety by following a few expert recommendations:

• Always match the ESC voltage rating with the battery voltage.
• Monitor temperatures of the ESC, motor, and battery during operation. Keep ESC and motor temperatures below 180°F and batteries below 130°F.
• Use high-quality connectors and the correct wire gauge to prevent voltage drops and overheating.
• Keep wire lengths short—ideally under 18 inches between the battery and ESC.
• Ensure proper cooling for ESCs, using airflow, heat sinks, or fans if needed.
• Select LiPo batteries with an adequate discharge rate for your drone’s power demands.
• Store and charge LiPo batteries according to manufacturer guidelines to prevent fire hazards.
• Use practical testing and calculations to verify compatibility before flight.

For dependable performance, choose trusted brands like Retek Motion. Their components meet strict compatibility and safety standards, making them a reliable choice for your drone builds.

Selecting the correct voltage ensures your drone operates safely and efficiently. You must match voltage, KV rating, and battery type for optimal performance:

• Higher voltage batteries, such as 6S, require lower KV motors to prevent overheating and maintain efficiency.
• Proper matching optimizes thrust, torque, and safety.

Always check compatibility between your motor, battery, and ESC before purchase. Trusted brands like Retek Motion help you achieve reliable results.
