Description

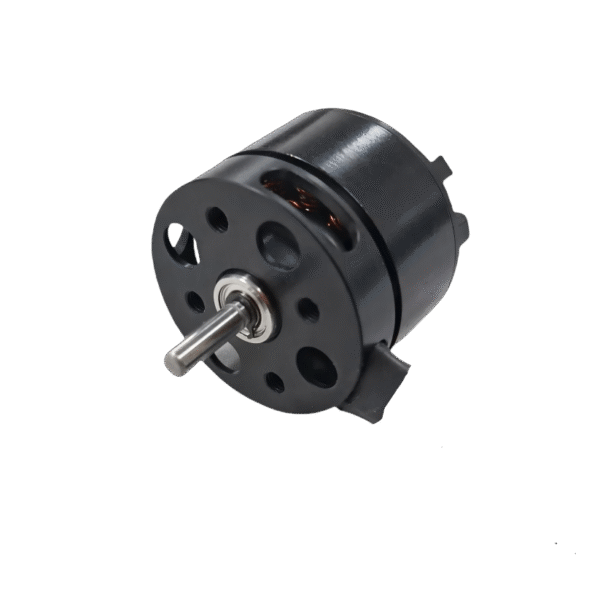

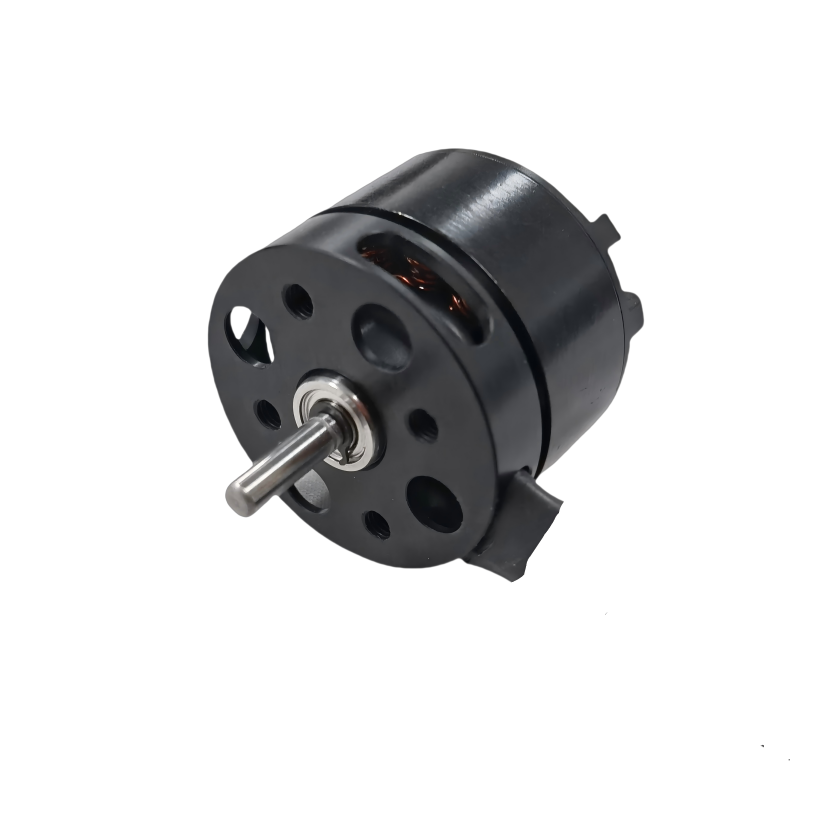

The LN2208 1800KV-2100KV Brushless Drone Motor is specifically designed for FPV racing and freestyle drones that demand fast response, high thrust, and lightweight power. Built with precision CNC-machined parts, this motor delivers outstanding acceleration and control, making it a top choice for drone racing enthusiasts and professional pilots.
With a KV rating of 1800, the LN2208 supports 2S–7S LiPo batteries and works best with 5 to 6-inch propellers. Under optimal conditions, it can produce up to 1690g of thrust, providing powerful lift for lightweight builds. Its high efficiency (up to 3.38 g/W) allows for longer flight time without compromising on performance, giving pilots an edge in both speed and endurance.
The motor features low-resistance windings, high-quality magnets, and dynamic balancing for minimal vibration and stable rotation. The rugged aluminum casing improves heat dissipation and enhances durability during high-speed operation.
Thanks to its lightweight construction and superior thrust-to-weight ratio, the LN2208 is ideal for competitive FPV builds and agile freestyle drones. Whether you’re racing through tight courses or performing advanced aerial maneuvers, this motor provides the responsiveness and power needed to stay ahead.
If you’re looking for a reliable, high-performance FPV drone motor, the LN2208 offers the perfect balance of speed, control, and efficiency—engineered for serious performance.
Electric Spec | ||||||||||||||||||

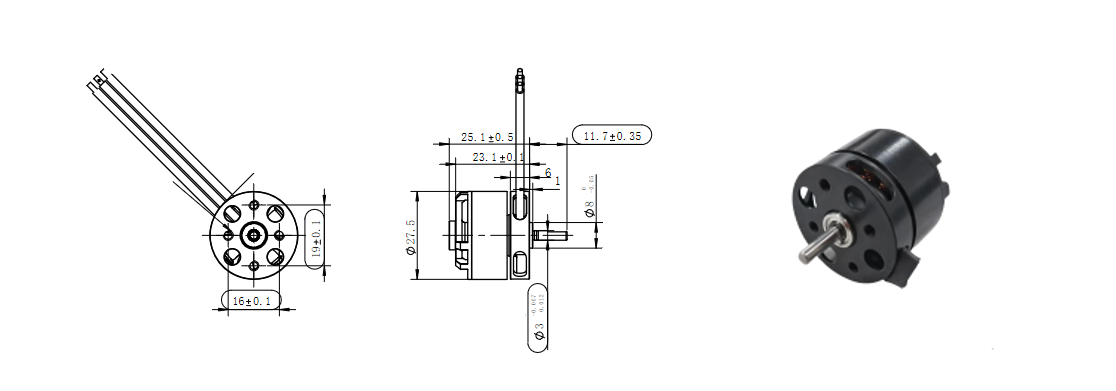

Max. P(W) | Voltage(V) | Max. I.(A) | KV | No-load Current(A) | Resistance(mΩ) | Poles | Motor Dim.(mm) | Stator Dim.(mm) | Mounting (mm) | N.W.(g) | Prop.(inch) | |||||||
960(7S) | 2S-7S | 40(7S) | 1800 | 1 | 60 | 14 | φ27.5*11.7 | φ22*8 | M3-19*16 | 36 | 5″~6″ |
Thrust Testing Data | |||||||
Propeller | kV Value | Throttle(%) | U(V) | Current(A) | Thrust(g) | Power(W) | Efficiency(g/W) |
5055 | 1800KV | 50% | 24 | 10.68 | 767 | 256.3 | 2.992 |
60% | 16.3 | 1025 | 391.2 | 2.62 | |||
70% | 22.52 | 1222 | 540.5 | 2.261 | |||
80% | 30.22 | 1454 | 725.3 | 2.005 | |||
90% | 38.13 | 1627 | 915.1 | 1.778 | |||
100% | 40 | 1690 | 960 | 1.76 | |||
5045 | 1800KV | 50% | 24 | 8.92 | 670 | 214.1 | 3.13 |
60% | 13.78 | 899 | 330.7 | 2.718 | |||
70% | 18.94 | 1110 | 454.6 | 2.442 | |||
80% | 25.29 | 1342 | 607 | 2.211 | |||
90% | 32.86 | 1580 | 788.6 | 2.003 | |||
100% | 33.1 | 1580 | 794.4 | 1.989 | |||
5055 | 1950KV | 50% | 24 | 8.38 | 679 | 201.1 | 3.38 |
60% | 13.31 | 914 | 319.4 | 2.86 | |||
70% | 19.34 | 1169 | 464.2 | 2.52 | |||
80% | 26.24 | 1384 | 629.8 | 2.2 | |||
90% | 33.33 | 1587 | 799.9 | 1.98 | |||
100% | 39 | 1745 | 936 | 1.86 | |||
5045 | 2100KV | 50% | 21 | 8.13 | 540 | 170.7 | 3.163 |
60% | 11.93 | 716 | 250.5 | 2.858 | |||
70% | 16.68 | 925 | 350.3 | 2.641 | |||
80% | 22.08 | 1114 | 463.7 | 2.403 | |||
90% | 28.75 | 1335 | 603.8 | 2.211 | |||
100% | 36.55 | 1544 | 767.6 | 2.012 | |||
5055 | 2100KV | 50% | 21 | 9.53 | 628 | 200.1 | 3.138 |
60% | 14.13 | 830 | 296.7 | 2.797 | |||
70% | 20.15 | 1063 | 423.2 | 2.512 | |||
80% | 27.28 | 1277 | 572.9 | 2.229 |
