Description

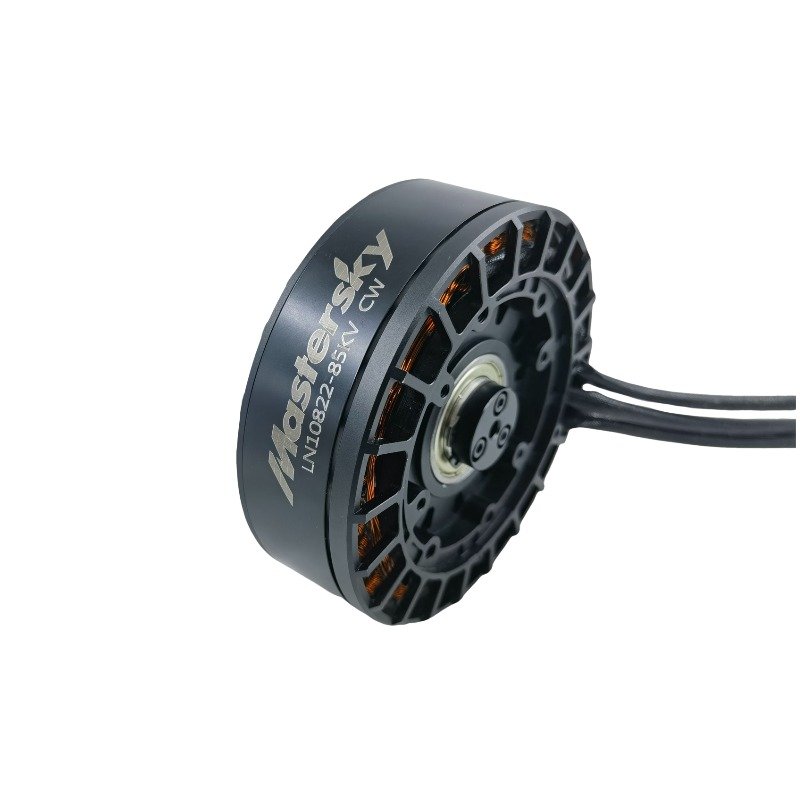

Discover the LN10822 Brushless Outrunner Drone Motor by Suzhou Retek Electric Technology Co., Ltd., a cutting-edge motion solution engineered for exceptional performance and reliability. This drone motor boasts an impressive maximum thrust force of 37.5 kg, making it an ideal choice for heavy-lift drone applications that demand powerful and stable propulsion. Weighing in at a mere 2.85 kg, the LN10822 minimizes overall system weight while still delivering superior power.

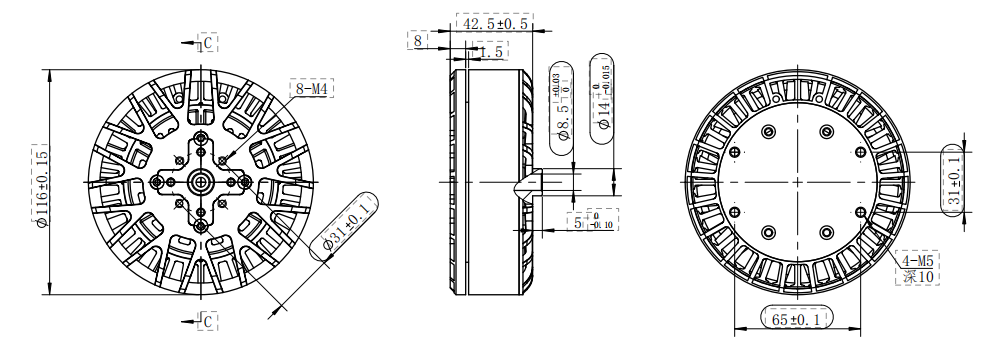

The LN10822 is designed with durability and efficiency in mind. Its compact motor dimensions of Ø116mm x 42.5mm and stator dimensions of 108mm x 22mm ensure versatility for integration into various drone frames. This motor is recommended for use with a 43-inch propeller and features an 8-M4-10mm mounting dimension, simplifying the installation process.
In terms of electrical specifications, the LN10822 supports a 14S-18S battery range, offering broad compatibility. It’s capable of handling a maximum instant current of up to 146 Amps and a maximum continuous current of 50 Amps, ensuring stable and efficient operation even under demanding conditions.
Thrust testing data, conducted at 54V, showcases the LN10822’s remarkable capabilities. Across various throttle percentages, the motor consistently delivers impressive thrust. For instance, at 63% throttle, it generates 21560 grams of thrust with a power input of 3211.7 watts, achieving an efficiency of 6.7 g/W. At 100% throttle, the thrust peaks at 37670 grams, drawing 146.1 Amps with a power input of 7895.3 watts, all while maintaining an efficiency of 4.8 g/W. This detailed performance data highlights the LN10822’s reliability and high efficiency across a spectrum of operating conditions.
Whether you’re seeking a high-performance motor for industrial drones, surveying UAVs, or other heavy-lift aerial applications, the Retek LN10822 drone motor provides the power, efficiency, and reliability you need. Choose Retek for superior motion solutions.
| Electric Spec | |||||||||||||||||
| KV | Battery Spec | Max. Thrust Force(KG) | Recom.Takeoff Weight(KG) | System Weight(KG) | Max. Current(A) | Max. Con. Current(A) | Motor Dim.(mm) | Stator Dim.(mm) | Mounting (mm) | Prop.(inch) | |||||||
| 85 | 14S-18S | 37.5 | 15-18 | 2.85 | 146 | 50 | φ116*42.5 | φ108*2 | 8-M4*10 | 43″ | |||||||
| Thrust Testing Data | |||||||||
| Propeller | Voltage(V) | Throttle(%) | Current(A) | Thrust Force（g） | Power Input(W) | Speed(RPM) | Efficiency(g/W) | Torque(N·m) | Power Output（W） |
| 43“ | 54V | 33% | 11.3 | 7175 | 614.7 | 1485 | 11.7 | 3.37 | 523.3 |
| 35% | 13.1 | 7885 | 710.4 | 1557 | 11.1 | 3.7 | 603 | ||
| 37% | 15.9 | 8965 | 862.1 | 1660 | 10.4 | 4.21 | 731.7 | ||
| 39% | 18 | 9740 | 975.6 | 1730 | 10 | 4.58 | 829.2 | ||
| 42% | 21.2 | 10875 | 1148.8 | 1827 | 9.5 | 5.12 | 978.9 | ||
| 45% | 26.6 | 12680 | 1442.2 | 1972 | 8.8 | 5.97 | 1232.5 | ||
| 48% | 30.9 | 14000 | 1670.7 | 2071 | 8.4 | 6.59 | 1428.8 | ||
| 51% | 35.2 | 15300 | 1907.5 | 2165 | 8 | 7.19 | 1630.3 | ||
| 54% | 42.4 | 17305 | 2295.7 | 2303 | 7.5 | 8.11 | 1956.6 | ||
| 57% | 47.8 | 18715 | 2585.4 | 2396 | 7.2 | 8.76 | 2197 | ||
| 60% | 52.1 | 19810 | 2819.9 | 2466 | 7 | 9.26 | 2390.1 | ||
| 63% | 59.3 | 21560 | 3211.7 | 2574 | 6.7 | 10.06 | 2710.2 | ||
| 66% | 65.7 | 23030 | 3557.4 | 2662 | 6.5 | 10.73 | 2990.1 | ||
| 69% | 73.8 | 24795 | 3992.3 | 2763 | 6.2 | 11.54 | 3339.4 | ||
| 72% | 80.5 | 26215 | 4358.1 | 2842 | 6 | 12.2 | 3630.7 | ||
| 75% | 88.5 | 27825 | 4790.5 | 2928 | 5.8 | 12.95 | 3971.1 | ||
| 78% | 97.4 | 29535 | 5270.8 | 3016 | 5.6 | 13.75 | 4343.3 | ||
| 81% | 105.1 | 30945 | 5683.9 | 3087 | 5.4 | 14.41 | 4656.6 | ||
| 84% | 107.8 | 31435 | 5830.9 | 3111 | 5.4 | 14.63 | 4766.6 | ||
| 87% | 118.2 | 33235 | 6389.4 | 3198 | 5.2 | 15.45 | 5173.2 | ||
| 90% | 128.3 | 34920 | 6938.7 | 3279 | 5 | 16.18 | 5554.3 | ||
| 100% | 146.1 | 37670 | 7895.3 | 3414 | 4.8 | 17.24 | 6162.9 | ||
