Description
The RETEK® LN10018-100kV sets new standards for professional UAV propulsion, delivering an industry-leading 26.5kg of maximum thrust – the ultimate solution for extreme payload applications.
Engineering Breakthroughs:
⚡ 100kV precision tuning for 125-145V high-voltage systems (34-36S)
⚡ 5,338W peak power with 26,462g thrust capacity at full throttle
⚡ Military-grade construction with 109mm diameter aluminum housing
⚡ 8×M4×10mm reinforced mounting for vibration-intensive operations
Unmatched Performance (53.6V testing):
✓ 40% throttle: 5,072g thrust @ 11.19g/W efficiency
✓ 75% throttle: 15,943g thrust @ 6.45g/W
✓ 100% throttle: 26,462g thrust @ 5,338.5W
✓ Recommended payload: 11-13kg (industry-best 1.8:1 thrust-to-weight)
Professional Applications:
✔ Heavy cargo drones (26kg+ capacity)
✔ Large-scale agricultural spraying (30L+ tanks)
✔ Industrial equipment transport
✔ Emergency response UAVs
Technical Superiority:
• 1.45kg optimized weight with 100×18mm stator
• 36-inch propeller compatibility
• 15A continuous current with advanced thermal management
• ±0.1mm machining tolerance for precision balance
Why Professionals Choose LN10018-100kV?
“Delivers 26kg thrust while maintaining 11.19g/W efficiency at 40% throttle – redefining heavy-lift performance benchmarks.”
RETEK Engineering Team
| Electric Spec | |||||||||||||||||
| KV | Battery Spec | Max. Thrust Force(KG) | Recom.Takeoff Weight(KG) | System Weight(KG) | Max. Current(A) | Max. Con. Current(A) | Motor Dim.(mm) | Stator Dim.(mm) | Mounting (mm) | Prop.(inch) | |||||||

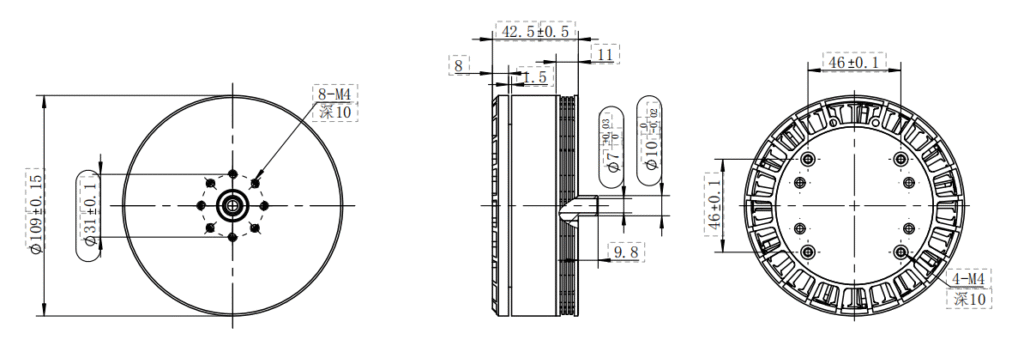

| 85 | 12S-14S | 26.5 | 13-15 | 1.45 | 100 | 15 | φ109*42.5 | φ100*18 | 8-M4*10 | 36″ | |||||||
| Thrust Testing Data | |||||||
| Propeller | Throttle(%) | Voltage(V) | Current(A) | Thrust Force（g） | Power(W) | Speed(RPM) | Efficiency(g/W) |
| 36“ | 40% | 53.6V | 8.3 1 | 5072 | 444.9 | 1815 | 11.19 |
| 45% | 53.6V | 1.2 1 | 6212 | 600.3 | 2014 | 10.16 | |
| 50% | 53.6V | 4.6 1 | 7466 | 782.5 | 2208 | 9.47 | |
| 52% | 53.6V | 6.2 1 | 8017 | 868.3 | 2286 | 9.08 | |
| 54% | 53.6V | 7.9 1 | 8642 | 959.4 | 2367 | 8.89 | |
| 56% | 53.6V | 9.8 2 | 9202 | 1061.2 | 2446 | 8.57 | |
| 58% | 53.6V | 1.8 2 | 9832 | 1168.4 | 2523 | 8.31 | |
| 60% | 53.6V | 3.9 2 | 10451 | 1281.1 | 2604 | 8.01 | |
| 62% | 53.6V | 6.2 2 | 11139 | 1404.3 | 2682 | 7.78 | |
| 64% | 53.6V | 8.5 3 | 11810 | 1527.6 | 2755 | 7.55 | |
| 66% | 53.6V | 1.1 3 | 12516 | 1666.9 | 2837 | 7.37 | |
| 68% | 53.6V | 3.5 3 | 13188 | 1795.6 | 2912 | 7.16 | |
| 70% | 53.2V | 6.4 4 | 13866 | 1951 | 2993 | 6.95 | |
| 75% | 53.1V | 4.9 5 | 15943 | 2406.6 | 3189 | 6.45 | |
| 80% | 53.0V | 4.4 8 | 17968 | 2915.8 | 3384 | 6 | |
| 90% | 53.6V | 2.6 | 24287 | 4427.4 | 3780 | 5.23 | |
| 100% | 53.6V | 100 | 26462 | 5338.5 | 4047 | 5.05 | |
